SF - Immunization Devices
Product Details
WHO Product ID
E003-074
Status
Prequalified
Date of acceptance
Type
E003: Refrigerators and freezers
Product Desc

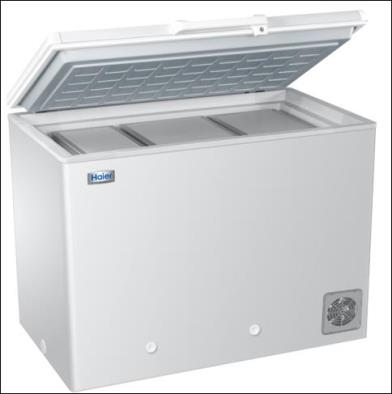

Solar direct drive refrigerator/freezer
Appliance Type
E003
Manufacturer
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone Qingdao(266111), China; People's Republic of
China
Valid until
Specifications
Product identification
Manufacturers Reference
HTCD 90 SDD
Country of Manufacture
China
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Hold over time (hours:mn)
137
External dimensions length (mm)
1128.00
Energy consumption (cool down) (kWh/24h)
0.97
External dimensions width (mm)
875.00
EnergyConsump.ContinuousPower(kWh/24h)
0.91
External dimensions height (mm)
720.00
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
38.00
Refrigerant type
R600a
Refrigerator's gross volume (Litres)
58.00
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Waterpack freezing capacity (Kg/24 hrs)
2.43
Waterpack storage capacity (Litres)
12.00
Freezer's gross volume (Litres)
32.00
List of accessories
Baskets; manuals; keys
Price and shipping
Shipping volume (m3)
0.98
Price 1
Price: USD 5275
Shipping weight (kg)
113.00
Price 2
>100units USD 5226
Year of base price
2023
Incoterms
FCA
Quality standard
Quality Standard
ISO 13485;Other
Specification Reference
Applicable PQS specification: E003/RF05.3
Applicable PQS VP(s): E003/RF05-VP.3
Applicable PQS VP(s): E003/RF05-VP.3
Quality standard (Other)
ISO 9001:2008;ISO 14001
Verification
Verification Report Reference
WB-16-153
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone Qingdao(266111), China; People's Republic of
China
Document Details
180W x 4 or 360Wx 2 Solar Panel power
Price includes 30 days temperature logger
Freezer net volume: < 50 L
Freezing capacity range: < 5 kg/24h
Range of holdover time: 101 - 250 hours
Range vaccine storage capacity: 25L - 60L
Range waterpack storage capacity: < 20
